Tεχνικό φυλλάδιο:

Tightness level
Optical compartment IP 66 LEDSafe®
Electronic compartment IP 66 (*)
Impact resistance Glass IK 08 (**)
Aerodynamic resistance (CxS)​ Mini 0.040m²
  Midi 0.057m²
  Maxi 0.070m²
Nominal voltage 230V - 50Hz
Electrical class I or II (*)
(*) according to IEC - EN 60598 (**) according to IEC - EN 62262
Weight  Mini 7Kg
  Midi 8,7kg
  Maxi 14,5kg
Installation height : Mini 3,5 - 6m
  Midi 4 - 8m
  Maxi 8 - 12m
Materials
Body + crown Die-cast aluminium
Protector Extra-clear flat glass
Colour AKZO black 200 sanded
THE IDEAL INSTRUMENT FOR LIGHTING URBAN ENVIRONMENTS​

LENSOFLEX®2
The Piano range of luminaires have been equipped with second generation LensoFlex®2photometric engines that have been specifically developed for lighting spaces where the well-being and safety of people using the environment are essential.
The LensoFlex®2 concept enables LEDs to be placed horizontally and offers a lighting distribution that is specifically adapted to the needs of each application.

FUTUREPROOF
The Piano range is designed to meet our FutureProof concept.
Both the photometric engine and the electrical power supply can be replaced on-site to take advantage of any future technological developments.
This easy and quick procedure reduces maintenance costs and contributes to reducing the total cost of ownership.

PERFORMANCE AND FLEXIBILITY
The Piano luminaires are equipped with photometric engines composed of modular quantities of LEDs so that they can offer a wide range of lumen packages.
They can also be equipped with a variety of dimming options for a substantial reduction in energy consumption.

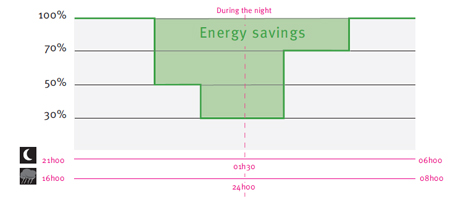

VARIABLE INTENSITY (DIMMING) FOR GREATER SAVINGS





Throughout the day, the lighting needs vary according to daylight and more importantly activity in the area.
The right lighting is adapting precisely the quantity of light according to the real needs at a specific time.

Dimming systems can generate substantial energy savings. The Piano luminaires can be equipped with different dimming and remote management systems.

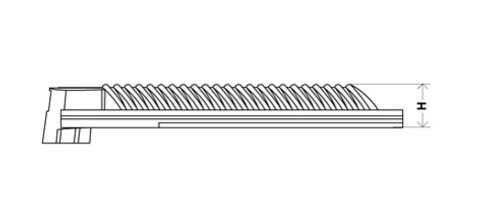

Side view



  Mini Midi Maxi
H 87mm 87mm 92mm

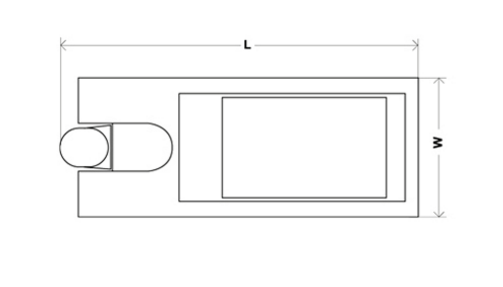

Top view



  Mini Midi Maxi
L 585mm 677mm 989mm
W 276mm 276mm 295mm





LENSOFLEX®2

The Piano range of luminaires is equipped with second generation LensoFlex®2 photometric engines that have been specifically developed for lighting spaces where the well-being and safety of people using the environment are essential.
This system is based upon the addition principle of photometric distribution. Each LED is associated with a specific lens that generates the complete photometric distribution of the luminaire. It is the number of LEDs that determines the intensity level of the light distribution.


PIANO - LENSOFLEX®2

Lifetime residual flux
@ tq 25°C (**)


     Mini Midi Maxi
Number of LEDs Neutral white (4000K) 16 LEDs 24 LEDs 32 LEDs 48 LEDs 56 LEDs 72 LEDs 88 LEDs 96 LEDs 104 LEDs @100.000h
Current: 350mA Luminaire flux range (lm)* 2.400 3.600 4.800 7.200 8.400 10.800 13.200 14.400 15.600 90%
Power consumption (W) 90 28 36 55 63 80 94 109 118
Current: 500mA Luminaire flux range (lm)* 3.100 4.700 6.300 9.500 11.000 14.200 17.400 19.000 20.500
Power consumption (W) 26 39 52 77 89 111 134 154 166
Current: 700mA Luminaire flux range (lm)* 4.000 6.100 8.100 12.200 14.200 18.300 22.400 - - 80%
Power consumption (W) 38 55 73 107 123 154 196 - -
(*) The nominal flux is an indicative LED flux @ tj 25°C based on LED manufacturer’s data.
The real flux output of the luminaire depends on environmental conditions (e.g. temperature and pollution) and the optical efficiency of luminaire.
Nominal flux depends on the type of LED in use and likely to change in accordance with the continuous and rapid developments in LED technology.
(**) In accordance with IES LM-80 - TM-21.

LIGHT DISTRIBUTIONS

LED optic 5136 - Narrow road

LED optic 5103 - Residential street

LED optic 5102 - Motorway

LED optic 5068 - Urban road

LED optic 5120 - Medium area

LED optic 5121 - Large area




INSTALLATION

The Piano luminaire can either be post-top or side-entry mounted.

Post-top



Side-entry mounting



MAINTENANCE

FUTUREPROOF​

The Piano is designed to meet our FutureProof concept.
Both the photometric engine and the electrical power supply can be replaced on-site to take advantage of any future technological developments.

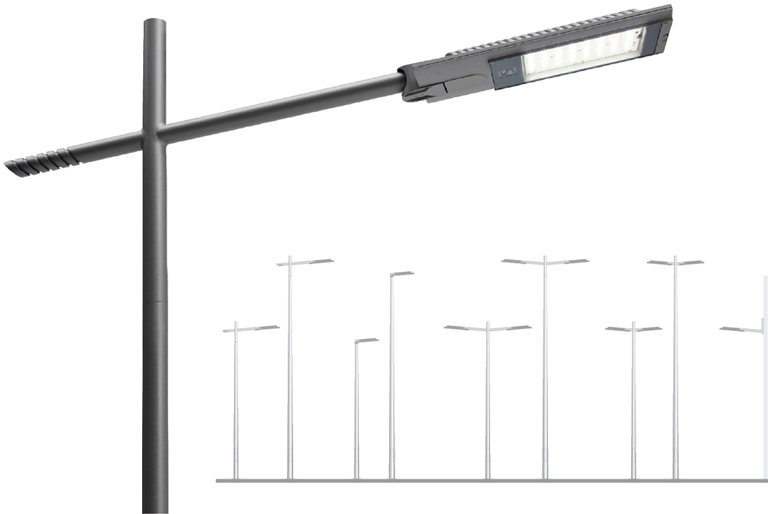

The Piano in combination with the ”Korda” family of poles or brackets make an elegant ensemble which is ideally suited to lighting residential streets, pedestrian areas, parks and bike paths - optimising the creation of ambiances that are both a source of well-being and safety for those in the city.

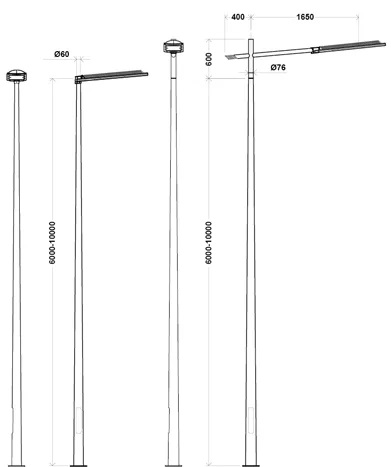

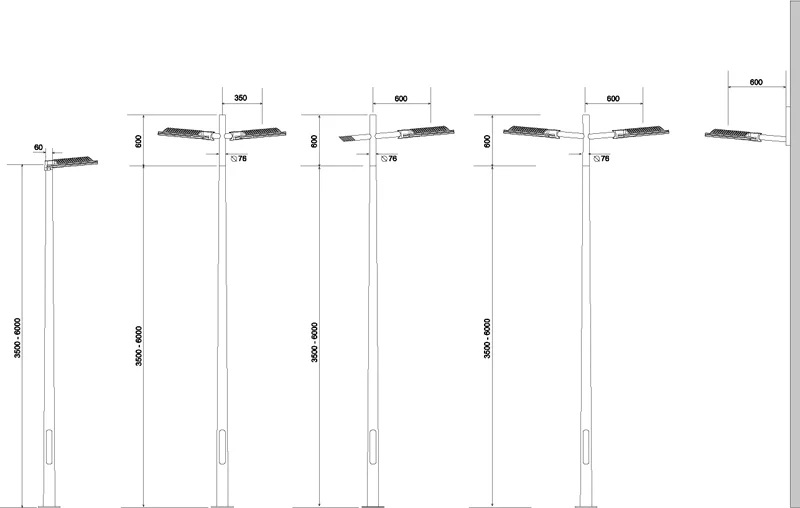

KORDA small model

If illegible, please open the PDF file of the brochure below



KORDA large model

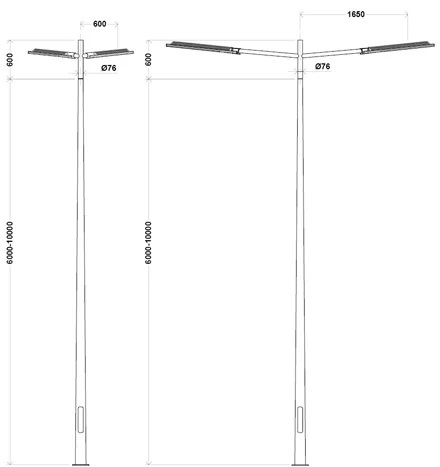

Single bracket



Double bracket



If illegible, please open the PDF file of the brochure below
