Οδικός Φωτισμός

Πληροφορίες

Tεχνικό φυλλάδιο:

Design: Thomas Coulbeaut
Installation height 4 to 10m
Lumen package range (nominal flux) 4,800 to 12,600lm
Colour temperature Neutral or warm white
Tightness level​ IP 66 (*)
Impact resistance​  (glass) IK 10 (**)
Nominal voltage 230V - 50Hz
Electrical class I or II (*)
(*) according to IEC - EN 60598 (**) according to IEC - EN 62262
Weight  12,5kg
Materials
Body Aluminium
Protector Glass
Colour AKZO grey 900 sanded
 A MODERN IDENTITY FOR EFFICIENT CATENARY LED LIGHTING​

CREATING WELCOMING PLACES

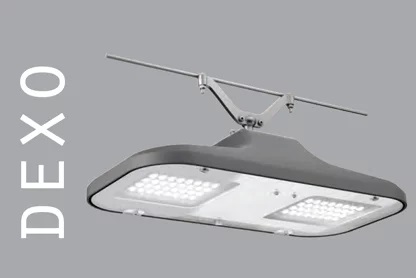

The Dexo of Schreder is a LED luminaire dedicated to suspended mounting. It is designed to provide maximised savings in energy and maintenance costs, with performing
photometries for different sites such as tramway areas, narrow roads, pedestrian streets and other places where poles can not be installed.
By freeing areas where space is very limited, the Dexo ensures that they are more welcoming and accessible. Its design provides a light, compact and secure
lighting solution for these particular places.

ENERGY SAVINGS OF UP TO 75%
The Dexo luminaire integrates the latest cutting edge technologies. The combination of LEDs, a driver with a constant flux system and dimming makes
it possible to achieve energy savings that can reach up to 75% compared with luminaires equipped with traditional light sources.
With this very favourable energy balance, the Dexo luminaire contributes to the effective management of finances and to the responsible use of energy.

LENSOFLEX®2
The Dexo luminaire is equipped with second generation LensoFlex®2 photometric engines that have been specifically developed for lighting spaces where the well-being
and safety of people using the environments are essential. This system is based upon the addition principle of photometric distribution. Each LED is associated with a specific lens that generates the complete photometric distribution of the luminaire. It is the number of LEDs in combination with the driving current that determines the intensity level of the light distribution.

HIGH QUALITY MATERIALS
The body and mounting pieces are composed of corrosion-free high-pressure die-cast aluminium protected by a powder-coating paint. The flat protector is made of
tempered safety glass (IK 07).

The Dexo luminaire is available in three versions:

  • 32 LEDs
  • 48 LEDs
  • 64 LEDs.

OPTIONS

  • Warm white LEDs (3000K)
  • Automatic electrical disconnector
  • Delivery without suspension mounting piece
  • Loop through version
  • Other photometries available
  • Intelligent drivers with CLO and dimming features
  • Owlet control solutions
  • Any other RAL or AKZO colour
Πλάτος (mm) 352
Μήκος (mm) 672
Ύψος - H1 (mm) 196
Ύψος - H2 (mm) 282
Βάρος (kg) 11,5

Αριθμός LEDs 32 LEDs | 48 LEDs | 64 LEDs
Φωτεινή ροή 4.800 - 12.600 lm
Σύστημα οπτικής μετάδοσης LensoFlex®2 - Type I, II, III, IV, V, VS according to IESNA
Διατήρηση φωτεινής ροής 90% @100.000 h @350mA, 500mA
(tq 25°C) 80% @100.000 h @700mA



Ενδεικτικές φωτεινές κατανομές

Φωτεινή κατανομή - 5098 - Type II - Medium
Φωτεινή κατανομή - 5102 - Type II - Short
Φωτεινή κατανομή - 5119 - Type VS - Short
