Tεχνικό φυλλάδιο:

Design: Michel Tortel



Tightness level
Optical compartment   IP 66 (*)
Control gear   IP 66 (*)
Impact resistance   IK 08 (**)
Aerodynamic resistance (CxS)   0.125m²
Nominal voltage    230V - 50Hz
Electrical class   I or II (*)
(*) according to IEC - EN 60598 (**) according to IEC - EN 62262
Weight    7kg
Materials
Body    Aluminium
Flat protector   Glass
Large protector   Polycarbonate
Colour   AKZO grey 900 sanded

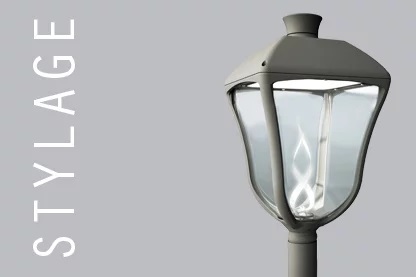

 CLASSICAL LANTERN WITH CUTTING-EDGE TECHNOLOGY







TYPICAL 4-FACED DESIGN PROPULSES CLASSICAL STYLE LANTERNS INTO THE 21ST CENTURY
Thanks to a modern twist, on a classic design, the Stylage easily blends into both historical city centres as well as areas with a more contemporary architecture.
The Stylage is the ideal tool to create aesthetic consistency in cities composed of a mixture of heritage and modern architecture and who wish to highlight their historical patrimony while accentuating their commitment to the future.

ENERGY SAVINGS OF UP TO 75%
Equipped with the performing, second generation LensoFlex®2 photometric engine, the Stylage luminaire offers a high performance with energy savings that can exceed 75% compared with luminaires fitted with traditional light sources.
This efficiency lowers its payback time and contributes to a responsible use of natural resources.
The Stylage can also be fitted with the Owlet range of control solutions to enable you to further maximise energy savings by adapting the light levels according to the real needs of the area being lit.

ZERO LIGHT POLLUTION
The flat glass protector of the Stylage luminaire provides a sharply cut-off light distribution to direct the light only to where it is needed.
This modern luminaire boasts a 0% ULOR (Upward Light Output ration) to ensure landscapes with high visual comfort.

FUTUREPROOF
The Stylage is FutureProof. Both the LED engine and the electronic assembly can be replaced, without any tools, to take advantage of future technological developments.



Front view


  Stylage
H 704mm



Top view


  Stylage
L 373mm
W 373mm






PHOTOMETRY

Stylage - LensoFlex®2​

Lifetime residual flux
@ tq 25°C(**)

Number of LEDs Neutral white (4000K) 16 LEDs 24 LEDs 32 LEDs 48 LEDs @100.000h
Current: 350mA Nominal flux (lm)* 2200 3400  4500 6800 90%
Power consumption (W) 18 27 36 53
Current: 500mA Nominal flux (lm)* 3000 4500 6000 9000
Power consumption (W) 26 38 51 75
Current: 700mA Nominal flux (lm)* 3800 5800 7700 11600 80%
Power consumption (W) 36 55 71 107
(*) The nominal flux is an indicative LED flux @ tj 25°C based on LED manufacturer’s data.
The real flux output of the luminaire depends on enviromental conditions (e.g. temperature and pollution) and the optical efficiency of luminaire.
Nominal flux depends on the type of LED in use and is likely is to change in accordance with the continuos and rapid developments in LED technology.

LIGHT DISTRIBUTIONS

LED Optic - 5096 - Residential area

LED Optic - 5068 - Square (Symmetrical)

LED Optic - 5068 Urban road (asymmetrical)



INSTALLATION

POST-TOP AND SUSPENDED MOUNTING
The Stylage luminaire is available with post-top (60 mm spigot or 3/4” gas) or a suspended mounting (3/4” gas).

Post-top  Suspended

MAINTENANCE

FUTUREPROOF
The Stylage is designed to meet our FutureProof concept.
Both the photometric engine and the electronic compartment can be replaced to take advantage of any future technological developments.
