Tεχνικό φυλλάδιο:

 Design: Achilles Design



Installation height   3.5 to 5m
Lumen package range (nominal flux)   2000 to 6100 lm
Colour temperature   Neutral or warm white
Optical compartement tightness level   IP 66 (*)
Control gear tightness level   IP 66 (*)
Impact resistance   IK 08 (**)
Nominal voltage    230V - 50Hz
Electrical class   I or II (*)
(*) according to IEC - EN 60598 (**) according to IEC - EN 62262
Weight    6,7kg
Materials
Cover   Polycarbonate
Base section   High-pressure die-cast aluminium
Gear tray   High-pressure die-cast aluminium
Protector   Polycarbonate
Colour   AKZO grey 900 sanded
 CLASSIC LANTERN REVIVED WITH CONTEMPORARY DESIGN AND CUTTING EDGE TECHNOLOGY







ELEGANT AND COST-EFFECTIVE SOLUTION

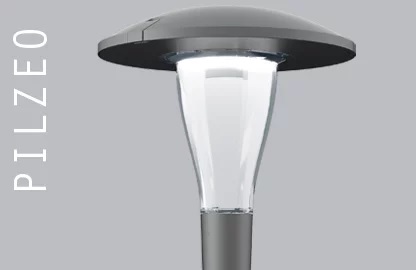

The name of the post-top luminaire Pilzeo refers directly to the `Pilzleuchte' - litterally `mushroom luminaire' - a very popular type of lantern in German-speaking countries.
This classical form has been refreshed to provide a contemporary design for aesthetic continuity while generating massive energy savings. Based on the proven LensoFlex®2 engine, it provides a high-performance lighting solution to guarantee safety and well-being in public areas.

ENERGY SAVINGS OF UP TO 85%
The Pilzeo luminaire integrates the latest cutting edge technologies. The combination of LEDs, a driver with a constant flux system and dimming makes
it possible to achieve energy savings that can reach up to 85% compared with luminaires equipped with traditional light sources.
With this very favourable energy balance, the Pilzeo luminaire contributes to the effective management of finances and to the responsible use of energy.

BACK LIGHT CONTROL TO PREVENT INTRUSIVE LIGHT
Some versions of the Pilzeo can be equipped with a Back Light Control system.
Thanks to an additional control plate inside the luminaire body, light spill from the back of the luminaire is minimised to avoid intrusive light on buildings.

FUTUREPROOF
The Pilzeo is FutureProof. Both the LED unit and the electronic assembly can be replaced, without any tools, to take advantage of future technological developments.


Pilzeo



Pilzeo

W 524mm
H 530mm



PHOTOMETRY

Pilzeo - LensoFlex®2​

Lifetime residual flux
@ tq 25°C(**)

Number of LEDs Neutral white (4000K) 8 LEDs 16 LEDs 24 LEDs @100.000h
Current: 350mA Nominal flux (lm)* - 2400  3600 90%
Power consumption (W) - 19 28
Current: 500mA Nominal flux (lm)* - 3100 4700
Power consumption (W) - 26 39
Current: 700mA Nominal flux (lm)* 2000 4000 6100 80%
Power consumption (W) 19 38 55
(*) The nominal flux is an indicative LED flux @ tj 25°C based on LED manufacturer’s data.
The real flux output of the luminaire depends on enviromental conditions (e.g. temperature and pollution) and the optical efficiency of luminaire.
Nominal flux depends on the type of LED in use and is likely is to change in accordance with the continuos and rapid developments in LED technology.

LIGHT DISTRIBUTIONS

LED Optic - 5068 - Square

LED Optic - 5068 - Urban road

LED Optic - 5121 Large space

LED Optic - 5102 Narrow street

LED Optic - 5103 Medium space

LED Optic - 5098 Wide street
