Tεχνικό φυλλάδιο:

Design: Michel Tortel



Tightness level​
Optical compartment   IP 66 (*)
Impact resistance Glass  IK 08 (**)
Aerodynamic resistance​ (CxS) 0.057m² (*)
Nominal voltage​   230V - 50Hz
Electrical class​   I or II (*)
(*) according to IEC - EN 60598 (**) according to IEC - EN 62262
Weight  (empty) 9.5kg
Materials
Base section   Painted die-cast aluminium
Arms   Die-cast aluminium
Cover   Aluminium
Protector   Tempered glass
Colour   AKZO grey 900 sanded
 ELEGANT AND ECONOMICAL LED SOLUTION FOR THE CITY AND RESIDENTIAL ENVIRONMENTS







AMBIANCE WITH ZERO LIGHT POLLUTION
The Isla LED-equipped luminaire brings together some of the significant advantages of LED technology:

  • lower power consumption
  • a perfect control of the light distribution
  • a long-lasting performance and
  • a wide range of possibilities in terms of integrated intelligence.

The optical compartment of the Isla LED is sealed by flat glass that offers the advantage of not producing intrusive light and of meeting the most demanding light pollution criteria (no emission of upper flux, thereby satisfying in particular the needs for high-quality urban lighting.

LENSOFLEX®2
The Isla LED luminaire is equipped with second generation LensoFlex®2 photometric engines that have been specifically developed for lighting spaces where the well-being and safety of people using the environment are essential.
The LensoFlex®2 concept enables LEDs to be placed horizontally and offers a lighting distribution that is specifically adapted to the needs of each application.

ENERGY SAVINGS OF UP TO 75%
The Isla LED integrates the latest technology. The combination of LED technology, a driver working with a constant flux system and a dimming system makes it possible to achieve energy savings that can reach up to 75% compared with luminaires equipped with traditional light sources.
With this favourable energy balance, the Isla LED contributes to the effective management of public finances and to the responsible use of energy.

SMART LIGHTING
The Isla LED luminaires can integrate the Owlet range of control solutions to operate either in stand-alone mode, in an autonomous network or an interoperable network.
The Isla LED luminaire can operate with a photocell, a scheduled dimming system, a motion detection unit, a Constant Light Output (CLO) or a complete remote Owlet management system to adapt the lighting to the real needs of the place.
You save energy, lengthen the life of your lighting installation, reduce maintenance costs, enhance comfort and increase safety.

Side view

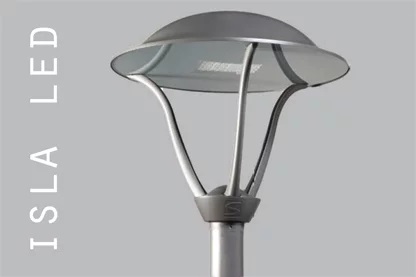

Isla LED
H 636mm
Ø 647mm



Thanks to their highly directional flux and optimised position and inclination, the LEDs fitted with special lenses offer an excellent control of the lighting.
This control is characterised either by:

  • optimal uniformity
  • a source of visual comfort and increased safety
  • a remarkable distance between poles.

The optical compartment of the Isla LED is sealed by flat glass that offers the advantage of not producing intrusive light and of meeting the most demanding light pollution criteria (no emission of upper flux).

The Isla LED luminaire is offered with 3 photometric variants so as to offer a lighting solution for many applications:

  • public square configuration
  • street configuration
  • street (extensive) configuration.

Isla LED

Lifetime residual flux @tq 25°c (**)


Number of LEDs Neutral white 4000K 16 LEDs 24LEDs 32 LEDs 100.000 hours
Current: 350mA Nominal flux (lm)* 2400 3600 4800 90%
Power consumption (W) 19 28 36
Current: 500 mA Nominal flux (lm)* 3100 4700 6300
Power consumption (W) 26 39 51
(*)The nominal flux is an indicative LED flux @tj 25°C based on LED manufacturer's data. The real flux output of the luminaire depends on environmental conditions (e.g. temperature and pollution) and the optical efficiency of the luminaire.
Nominal flux depends on the type of LED in use and is likely to change in accordance with the continuous and rapid developments in LED technology.
(**)In accordance with IES LM-80 - TM-21.

Ενδεικτικές φωτεινές κατανομές

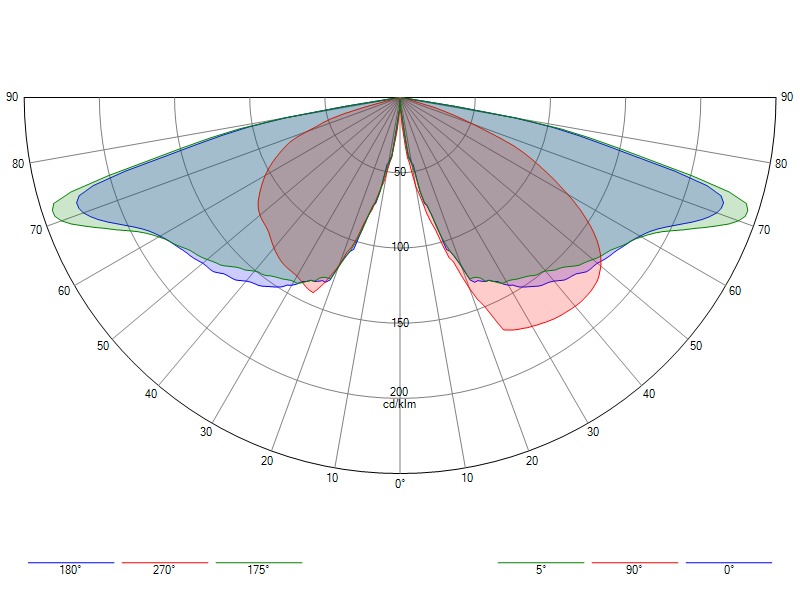

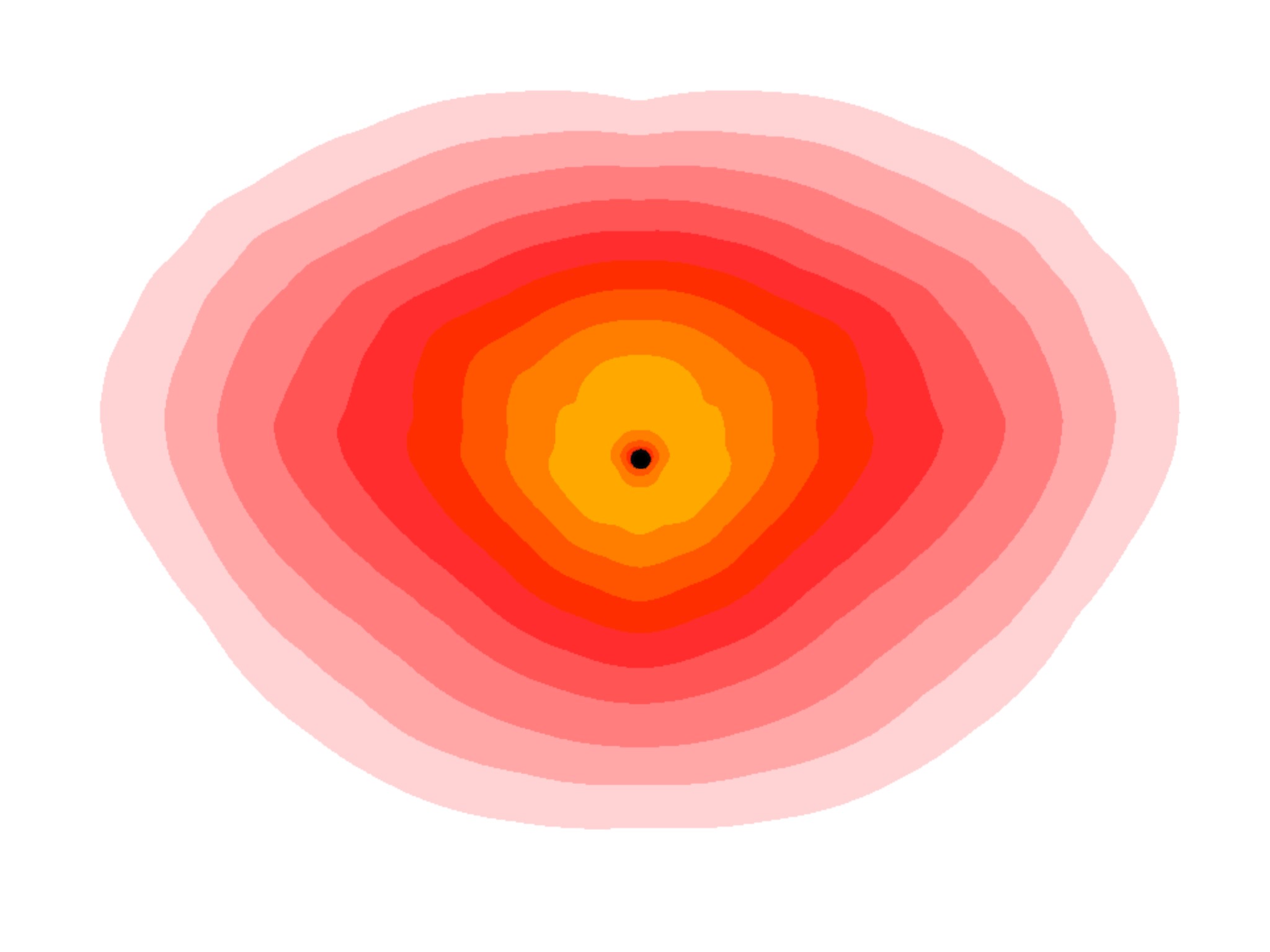

Φωτεινή κατανομή 5068 (Asymmetrical) - Type III - Medium

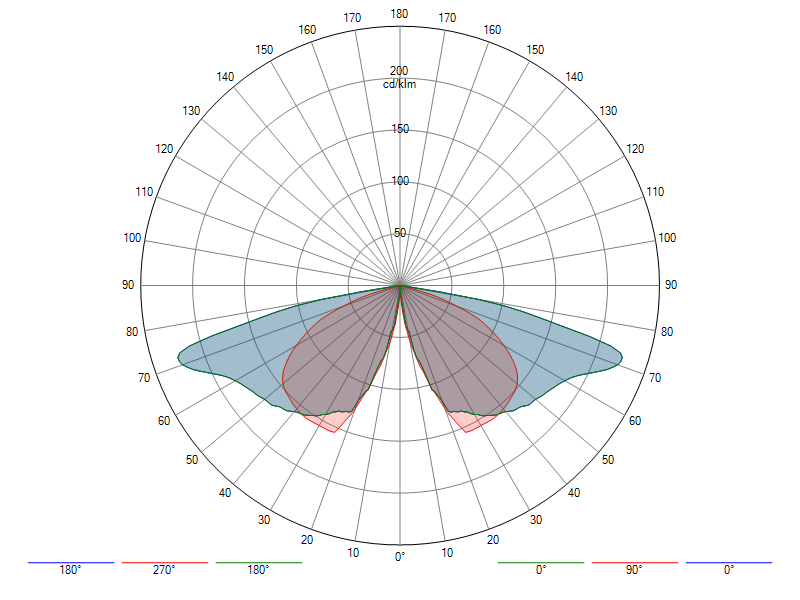

Φωτεινή κατανομή 5068 (Symmetrical) - Type III - Medium
Φωτεινή κατανομή 5136 (Asymmetrical) - Type II - Medium
