Tεχνικό φυλλάδιο:

Tightness level - module   IP 66 (*)
Impact resistance (**) Light ring IK 10 (PC)
180° IK 09 (PC)
360° IK 10 (PC)  / IK 05 (PMMA)
Nominal voltage    120-277V - 60Hz  / 230V - 50Hz
Electrical class   EU: I or II  -  US: 1
(*) according to IEC - EN 60598 (**) according to IEC - EN 62262
Weight
Module body   High-pressure die-cast aluminium and extrusion aluminium
Module protector Light ring Polycarbonate
180° Polycarbonate
360° Polycarbonate or PMMA
Embellishment for bolts + nuts   Coloured polycarbonate
Colour   AKZO grey 900 sanded
  Any RAL or AKZO colour upon request




THE ULTIMATE SOLUTION FOR SUPPORTING MANAGERS OF PUBLIC AND PRIVATELY-MANAGED SPACES
TO ENGAGE PEOPLE WITH THEIR ENVIRONMENT

SMARTER. MORE EFFICIENT. INTERACTIVE. CONNECTED. SHUFFLE YOUR WORLD!​
Much more than a lighting column, the Shuffle of Schreder connects people to their social environment.
It can integrate control systems, loudspeakers, surveillance cameras, hotspots, electrical vehicle charging stations, signage and a lot of other features to make people feel truly at home.
Managers of cities and privately-managed sites can integrate up to 5 modules in each column to suit the specific needs of their environment, securing better services and infrastructure for themselves and their citizens.

INFORMATION, IDENTITY, SAFETY, COMMUNICATION, ENTERTAINMENT AND MOBILITY IN ONE COLUMN
Redesigning, reorganising or improving your landscape? You can do them all at once with the Shuffle.
It offers unlimited opportunities to enhance the quality of life in society. You can fulfil and monitor all the societal needs in public and privately-owned areas with the same system.
No need to multiply the devices each time you identify a different need for your environment.
All your different features can be gathered together in one complete network. Not cast in bronze, but with versatility and prepared for future evolutions.

A TRULY SUSTAINABLE SOLUTION​
Thanks to a smart design, the Shuffle is an affordable, completely energy efficient solution that requires very low maintenance.
It takes advantage of a unique energy supply to effectively deploy various services.
By providing multiple requirements in a single column, it minimises the material needed in spaces and lowers the carbon footprint of an installation.

5 STAR MODULARITY

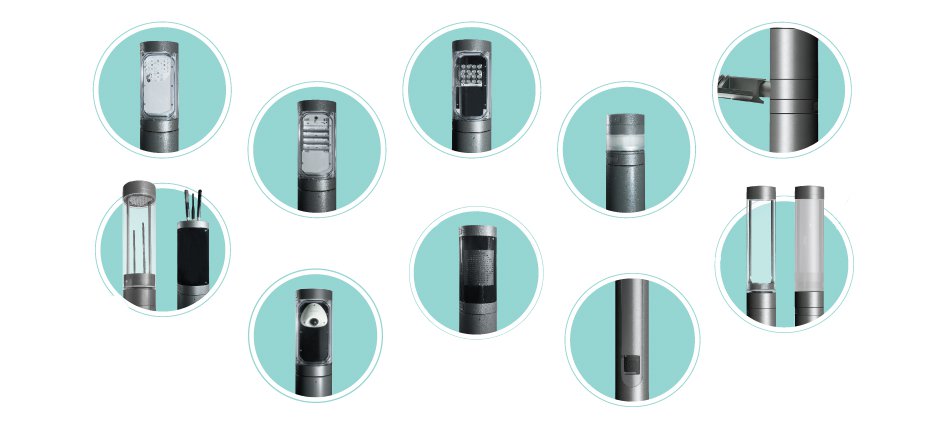

The Shuffle can integrate up to 5 modules with a spacer between 2 of them to provide a multitude of features in public areas.
With easy fixations, rotatable modules and plug-in connections, the Shuffle is a very handy and flexible tool.
Simply choose your combination, attach the modules, plug the connectors and the Shuffle is ready to enhance your environment.

ADAPTED TO SPECIAL ENVIRONMENTS
For sea fronts, promenades and piers, the Shuffle is available with a specific seaside finishing (a paint with extra protection against corrosion in salty environments) to withstand the harsh climatic conditions.
The Shuffle can also be fitted with additional light on a bracket: when more light or when a specific photometry is required, for lighting a pedestrian crossing for example. A bracket with a luminaire such as the Piano or Yoa can be installed.

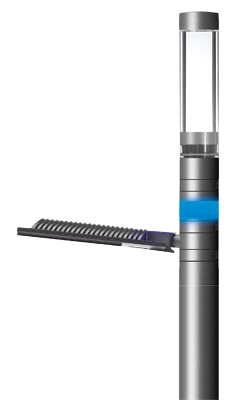

Shuffle with a Piano luminaire

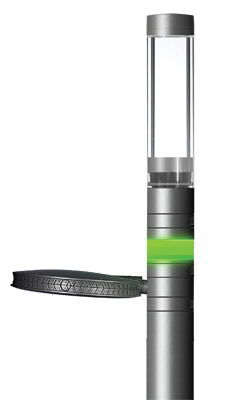

Shuffle with a Yoa luminaire

Designed to light roads, streets, squares and other places where creating a pleasant atmosphere is a key element, the post-top version of the Shuffle is available for mounting on a Ø60 or 76mm pole.
The elegant cylinder shape with a 360° clear or diffuse protector offers the same design and technical characteristics as the 360° LensoFlex® module of the Shuffle column. It benefits from a wide range of photometries and provides aesthetic consistency in environments lit by both the post-top and column versions of the Shuffle.
The Shuffle post-top version is available as a smooth cylinder or with a large canopy

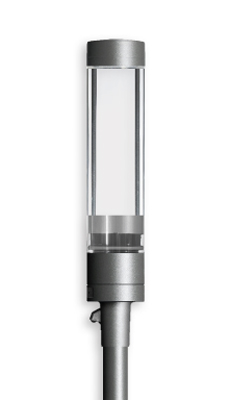

Top cover version

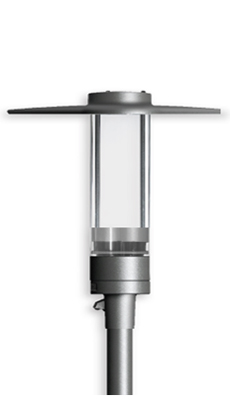

 Large canopy version



5 STARS MODULARITY

Applications Type
of LEDs
N°
LEDs
Current Lumen
Package
Options
360° module
  • Street lighting
  • Ambiance lighting
  • Pedestrian crossings
 Neutral or
 warm white
20

350 - 500 - 700mA

 1,600 -
4,500lm
  • Back light control
  • Photocell
  • Owlet remote management
  • Diffuse protector for an enhanced visual comfort
180° module:
Reflector

Down

  • Street lighting
  • Ambiance lighting
  • Area lighting

Up

  • Architectural lighting
 Neutral or
 warm white
24 700mA  2,300 -
7,200lm
  • Photocell
  • Owlet remote management
180° module:
LensoFlex®

  • Street lighting
 Neutral or
 warm white
20  350 - 500 - 700mA  2,000 -
4,700lm
  • Back light control
  • Photocell
  • Owlet remote management
180° module:
Spot - Collimator

 Down/Up

  • Architectural lighting
 Neutral or
 warm white
16 350 - 500mA 1,300 -
2,400lm
  • On-site inclination angle
  • settings: -10/+40°
  • Photocell
  • Owlet remote management



INSTALLATION

PLUG AND PLAY PHILOSOPHY
Designed to offer versatile combinations and an easy installation, the Shuffle is a very handy system for installation contractors.













Taking advantage of a unique energy supply grid to deploy multiple services, the Shuffle gathers all features together in one single pole.
All the modules are delivered pre-wired.
Quick connectors and a fool-proof mounting system guarantee a very easy and quick on-site installation.
The cabling - whether it concerns the power supply, internet connexion, sound or another integrated option - arrives in a dedicated box at the bottom of the pole.
Access to the fuses, mains and dedicated connections can be gained by opening a door.
This smart design means that the modules do not need to be opened and speeds up the installation process.

 EASY MOUNTING SYSTEM











The flare male and female parts of the modules are designed to smoothly overlap.
They encompass gaskets. Two clamps lock them together to ensure the perfect tightness of each module and to join the modules in a single column.
The rotatable modules can be oriented in the desired direction before the final lock. Dedicated embellishment parts hide the screws once the modules are locked, providing a smooth finish for the whole column.

BEYOND LIGHT

CONTROL SYSTEMS
LIGHT-ON-DEMAND TO ACHIEVE ENERGY SAVINGS OF UP TO 85%

The Shuffle integrates the Owlet control systems, which vary from basic stand-alone solutions to autonomous or interoperable networks (managing, monitoring, controlling and metering). One controller can command all the lighting modules of a Shuffle and propose different scenarios per module. Controllers are able to communicate together in a local or remote network.

  • Stand-alone solutions
  • Autonomous network
  • Interoperable network
  • With ou without detection scenarios (PIR sensor)

WLAN
STAY CONNECTED AT ALL TIMES

Two wireless internet versions are available: campus scale (for shopping centres or business complexes) as an extension of an existing network or urban scale (for city applications) so multiple users can connect at the same time. The bandwidth can be divided to assign a part to city operators with the remaining WiFi offered to the public so people can stay connected.

  • Mesh network
  • 2 versions:

           -    urban scale (30 - 50m)
           -    campus scale (up to 150m)

  • Dividable bandwidth

CCTV
CREATING A SENSE OF SAFETY WHILST KEEPING AN OPEN EYE

As superior compact CCTV camera with perfect night vision efficiency, high brightness compensation, temperature variation resistance and advanced event detections can contribute to reducing crime and increase a sense of safety for the general public. Disturbances can be quickly managed.

  • Image optimisation (contrasts, night vision, high luminosity)
  • Optimised data management (selected/delayed transmission, on-site storage…)
  • ONVIF communication standard
  • Event triggering
  • On-site
  • Privacy layers
  • 2 versions: digital or optical zoom
  • On-site tilting settings: 0-85°

LIGHT RING
EYE CATCHING AND PRACTICAL ATTRACTION

A touch of colour creates identity and a vivid ambiance. The light ring can also be a useful tool to manage living spaces. For example, in flashing mode, it can guide people in the right direction in an emergency situation. It could also indicate if the EV charger in being used by switching from red to green.

  • Create identity
  • Dynamic signage (on/off or flashing mode)
  • White, blue, green, red

LOUDSPEAKER
PROVIDE ENTERTAINMENT OR GUIDE CROWDS

The Shuffle offers an integrated sound system dedicated to open systems. It can be used for advertisements, public service announcements or to broadcast music or a local radio for specific events or simply for convivial open spaces.

  • 100V public system
  • Frequency range: 100 - 18,000Hz
  • 20W power output - perfect sound
  • Weatherproof

EV CHARGER
PROMOTE A MORE SUSTAINABLE FORM OF MOBILITY

As electric vehicles become more affordable, this advanced AC charging station offers an integrated solution for E-Mobility. With more charging points available, mobility will become greener and the air in the city purer.

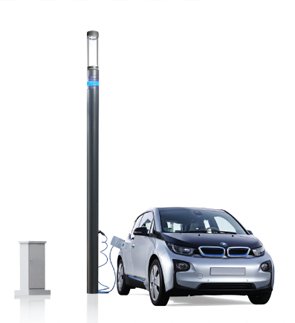

Seamlessly integrated in the Shuffle poles, the EV charger can be combined with a light ring switching from one colour to another to indicate availability.
The Shuffle is available with an European socket (type 2) and two power options: 11kW (16A) or 22kW (32A). With the 22kW, a small car can travel up to 200km after just one hour of recharging.
The EV charger is available with a communication unit inside a cabinet that manages user access authentication, meters the electricity consumption and communicates information to a third party service provider via the OCPP standard (Open Charge Point Protocol).
The communicated data enables dynamic asset management and provides information in real-time to the users and to the network manager.


  • AC charging
  • European sockets (type 2)
  • Safety locking during charging
  • Access authentifaction via RFID or QR code
  • Optional: communication, metering and access unit (for cabinet mounting)
  • Magnetic safety during charging



SHUFFLE SITE

SHUFFLE SITE: LIGHTING AND CONNECTING SMART CITIES​

In addition to integrating control systems, loudspeakers, surveillance cameras, electrical vehicle chargers, signage and hotspots, the Shuffle can now be fitted with a small cell from Huawei, to ensure that next-generation connectivity is accessible to everyone.

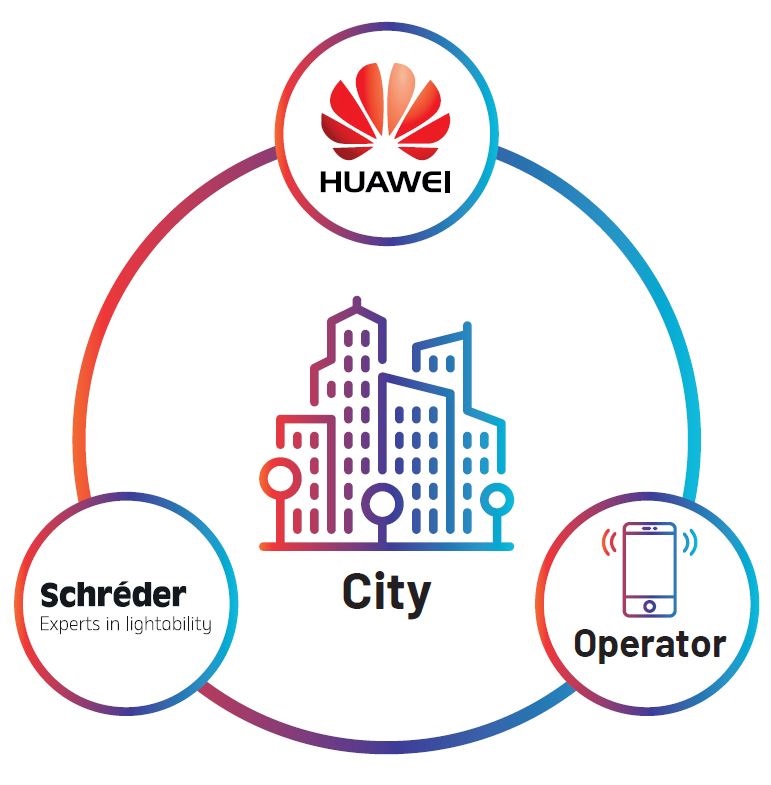

SYNERGIES FOR SMART CITIES

  • Huawei: telecom equipment expert who works closely with mobile operators
  • Schréder: lighting expert, a partner of cities
  • Operator: network expert to guarantee an optimal user experience



A WINNING SOLUTION



Advantages for mobile operators

  • Even coverage: light columns are distributed regularly (every 20-30 metres)
  • Optimal height for telecommunication purposes
  • FutureProof (can be adapted to 5G)
  • Easily accessible for maintenance
  • No site acquisition (small cell modules are added to existing light columns)
  • Power supply available
  • Public asset (poles maintained by the city)
  • Flexibility (possibility to rotate the modules 360°)

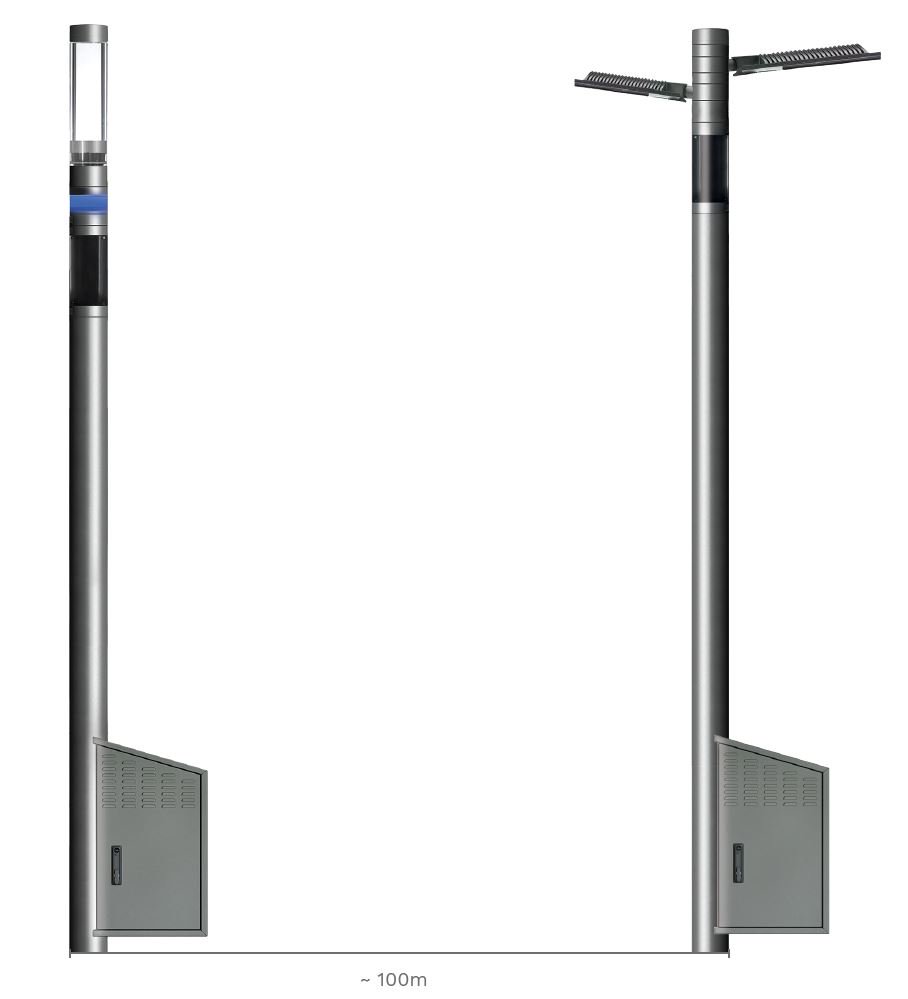

THE TWO MODULES OF THE SHUFFLE SITE

ANTENNA MODULE


Designed to offer versatile combinations and an easy installation, the Shuffle is a very handy system for installation contractors.



Providing 4G capacity and coverage

  • High speed mobile connection
  • Blends into the urban environment
  • Dual band: 3G and 4G
  • Easy site acquisition for mobile operators
  • Range up to 100m
  • Upgradable antenna can be added later, when additional capacity is needed



SIDE CABINET



  • The operator installs and owns the telecom equipment
  • Easy access for maintenance
  • Waterproof IP material
  • Upgradable base module can be equipped for 5G networks
